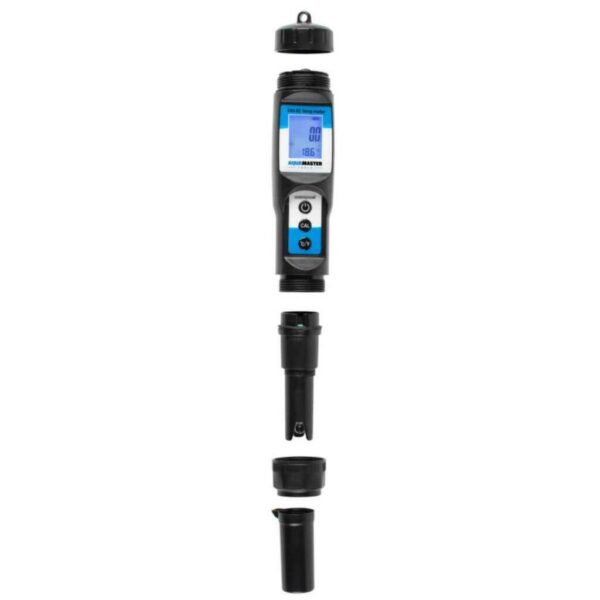

Aqua Master Tools | EC measuring device | E60 Pro

Description

EC measuring device E60 Pro- for EC and temperature measurements with precision!

The EC measuring device E60 Pro is a high-quality product of Aqua master tools and is suitable for measuring EC, PPM, TDS, and temperature in tap water, nutritional solutions, pool and pond water. With a simple push of a button, you can switch between the different parameters. is already pre -calibrated and with batteries .

application of the EC measuring device E60 Pro

Before using the EC measuring device, you have to remove the protective cap, the E50 electrode carefully filled with distilled water and dry . Press the on/off switch to switch on the EC measuring device. Keep the electrode vertically in the solution to be tested and let it circled carefully. Now wait a few seconds for the values ​​to be displayed on the display. With the C/F key you can switch between Grad Celsius and Fahrenheit if necessary. Rinse the electrode with water after use and switch off the measuring device by pressing the on/off switch.

What is the EC value?

The EC value, also called electrical conductivity, is a measure of the electrical conductivity of a solution. It is used to determine the content of dissolved ions in a solution . The higher the EC value, the higher the overall concentration of nutrients in a solution.

short: the higher the concentration of dissolved ions, the more conductive the solution and the higher the EC value.

cleaning and application

It is important that the electrode is thoroughly cleaned before each measurement to create precise measurement results. After the measurement, the electrode should be flushed thoroughly again to remove any residues. In agriculture and in hydroponic cultivation systems , the EC value is often used to monitor and control the nutrient content of solutions.

How do you calibrate the EC measuring device E60 Pro?

To calibrate an EC measuring device, you have to use a calibration solution . Here is the process for 1-point calibration:

1. prepare a calibration solution. You can use a ready -made solution.
2. Dive the EC measuring device into the calibration solution.
3. set the device so that it is adjusted to the calibration solution.
4. wait until the device shows a stable measured value.
5. compare the displayed measured value with the known value of the calibration solution. If the measured value is not correct, you can calibrate the device accordingly.

check the EC- measurement value after a certain time again to ensure that the device has been calibrated stably. It is important to note that different EC measuring devices can have different calibration methods. So make sure that you follow the manufacturer’s instructions to carry out correct calibration.

Technical data measuring range EC measuring device E60 Pro

measuring range

• EC: 0.0 ~ 19.9 ms/cm
• Temp.: 0 ° C ~ 50 ° C (32 ° f ~ 122 ° f)

resolution

• EC value 0.1 ms/cm
• Temp.: 0.1 ºC (1.0 ºF)

measurement accuracy

• EC: ± 2% F.S.
• Temp.: ± 0.5 ° C (32 ° f)

Further information

• Temperature equalization: 0 ° C – 50 ° C (32 ° F – 122 ° f)
• calibration EC: 1-point car calibration with buffer solution 1.4 EC
• Display display: battery display & amp; Automatic temperature compensation
• energy supply 3 × 1.5 volt AG-13 button cell (included in the scope of delivery)
• automatic switch -off: after 8 minutes
• Calibration display: If the calibration is correct
• waterproof: IP67
• Dimensions: 220 x 40 x 40 mm
• Weight: 104 grams

are included in the scope of delivery

• 1 x EC Temp meter E60 Pro
• 1 x user manual (NL – EN – DE)
• 3 × 1.5 volt AG-13 button cell
