Description
SANlight EVO-Series Description
General product description EVO-Series
Introducing the EVO-Series, SANlight unveils groundbreaking technological advancements, marking “the peak of evolution”. Tailored for specific applications, each luminaire in the EVO-Series excels in performance, solidifying SANlight’s position as the premier brand for LED plant lighting.
Perfect light control with protective function
LED contamination significantly impacts light output more than chip aging. Uncovered LED luminaires experience substantial light loss in a short time. SANlight’s EVO-Series features advanced three-dimensional secondary optics, capturing over 95% of emitted photons and directing them effectively to plants. This minimizes light losses, including reflections off tent walls, and safeguards LEDs from contamination. Additionally, the material is easy to clean with a damp cloth, ensuring prolonged efficiency.
Passive cooling
SANlight continues to utilize the highly effective passive cooling aluminum heat sink, maximizing energy efficiency and lifespan. Passive cooling not only reduces error susceptibility, risk, and noise levels but also ensures optimal performance over time.
Best efficiencies and robust chip technology

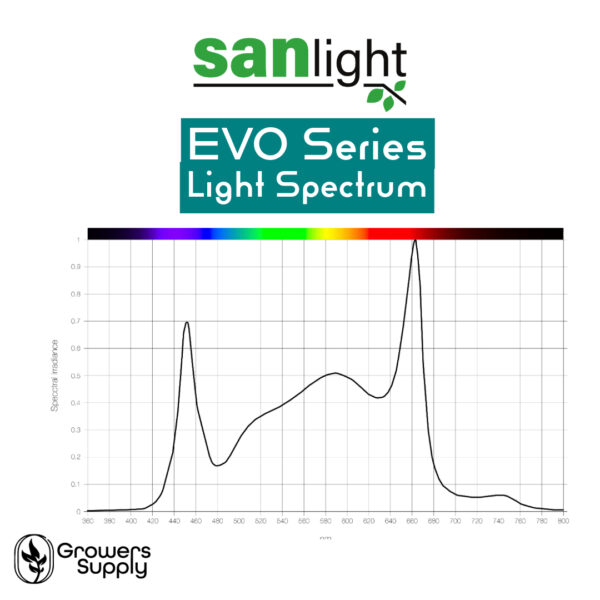

By integrating the latest OSRAM technology and Seoul Semiconductor’s patented WICOP technology, our modules achieve efficiencies exceeding 3µmol/s within a white broadband spectrum. Seoul’s mid-power LED chips are highly resilient and shielded from environmental factors, primarily due to the titanium oxide coating. This robust design ensures a realistic lifespan of over 90,000 hours (LM90).
Daisy chaining of the EVO-Series
The SANlight EVO Series offers different connection options, prompting us to deliberately exclude a power cord from each luminaire. This decision not only reduces unnecessary pollution but also conserves valuable resources. It provides you with the flexibility to create a customized plug-and-play system according to your requirements. For confined spaces, we recommend utilizing angled supply cables and extension cords. Rest assured, all connections with SANlight products boast IP65 certification, ensuring protection against dust and water jets, making them suitable for use in high humidity environments. The only exception is the power plug, as household socket tightness cannot be guaranteed.
Ready-to-dim
In 2021, SANlight introduced two new dimmer options for enhanced control: starting July 2021, the reliable Magnetic Dimmer will be compatible with the EVO-Series, followed by the app-controlled Bluetooth Dimmer available from August 2021.
SANlight Magnetic Dimmer: Ideal for smaller setups of up to approximately 10 luminaires, SANlight recommends this dimmer. Once connected to the luminaire, it enables dimming in 20% increments from 100% down to 40%. Additionally, users can activate a soft start (simulated sunrise) using the included magnetic key.
SANlight Bluetooth Dimmer (from August 2021): Specifically designed for larger installations, this Bluetooth Dimmer allows for easy setup and dimming of individual exposure groups, providing seamless control.
IP65
All connections made with SANlight products are IP65 certified. This means that your SANlight System is protected against dust and water jets.
Technical overview EVO SERIES
Additional information
| Weight | 7,5 kg |
|---|---|
| Dimensions | 131,8 cm |
| PPF | 1090 |
| Consmuption | 400 |
| Efficacy | >3,0 µmol/J |
Optimize your grow space with the cutting-edge EVO-Series lightning system

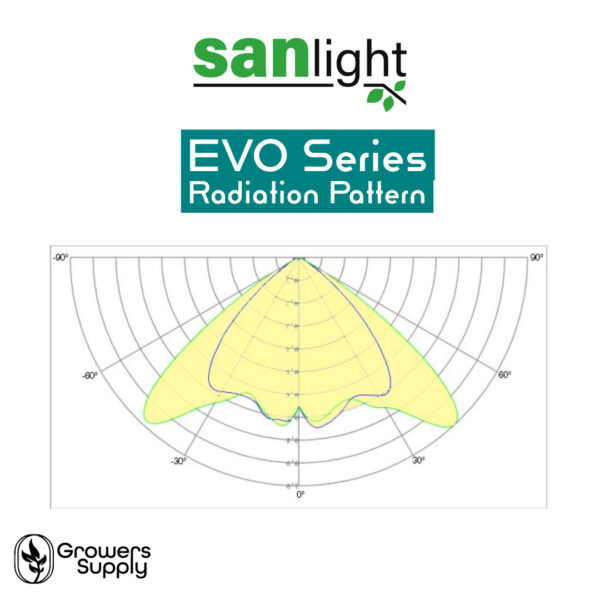

The new EVO-Series embodies evolution and forward-thinking in lighting technology. After extensive development, the wait is finally over, and the results are impressive. Offering three power classes with varying lengths, this series ensures optimal illumination for every grower’s cultivation area. Thanks to its asymmetrically radiating secondary optics and meticulously designed luminaires, the EVO-Series achieves remarkable homogeneity in light distribution. With a leading Lightengine delivering 3µmol/J, SANlight utilizes the innovative WICOP technology from Seoul Semiconductor and Osram UX3 technology to set new standards.
Maintaining its commitment to exceptional quality, SANlight guarantees minimal light degradation—only 10% over an extensive service life of 90,000 hours. The easily cleanable protective secondary optics prevent luminosity loss due to chemicals and dirt accumulation. Compared to Spyder lights, the EVO-Series offers superior height utilization within a Growbox, allowing for convenient placement of essential filters between the lights. Experience unparalleled efficiency and performance with the EVO-Series lightning system.
SANlight EVO-Series Grow-Tent Recommendations
