SONOFF SWV-ZFE Hydro ONE Zigbee Smart Water Valve With Flow Meter

Description

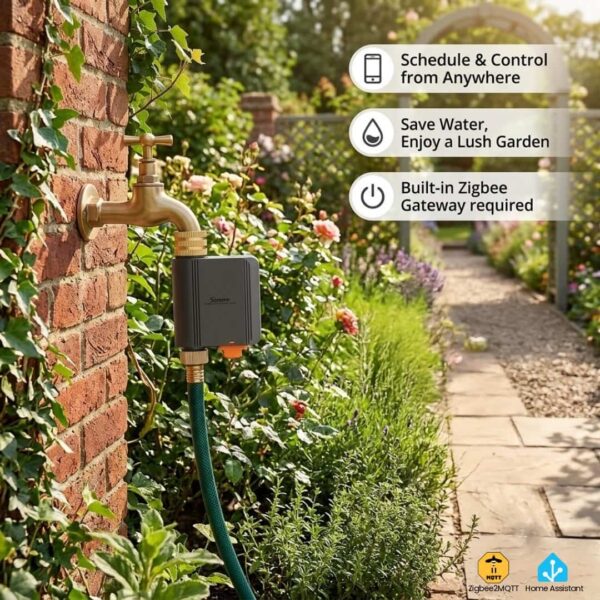

The SONOFF SWV-ZFE Hydro ONE is a Zigbee smart water valve with a built-in flow meter for precise outdoor irrigation.

You can choose between watering by duration or by exact target volume, so you know exactly how much water reaches your garden each cycle.

Up to six independent schedules let you set irrigation on odd or even days, custom intervals between 1 and 30 days, or selected weekdays. The valve automatically skips watering when rain or severe weather is detected and adjusts watering duration and volume based on seasonal changes. A built-in safety timer stops the valve if the target volume is not reached within the expected time, preventing issues from low water pressure.

The Hydro ONE uses Zigbee 3.0 for smart home connectivity and also supports BLE proximity control, so you can operate it directly from your phone when you are near the valve, even without a gateway. For smart home users, it integrates with Home Assistant through ZHA or Zigbee2MQTT over MQTT. It also works with J-Tec Server via MQTT for professional irrigation management.

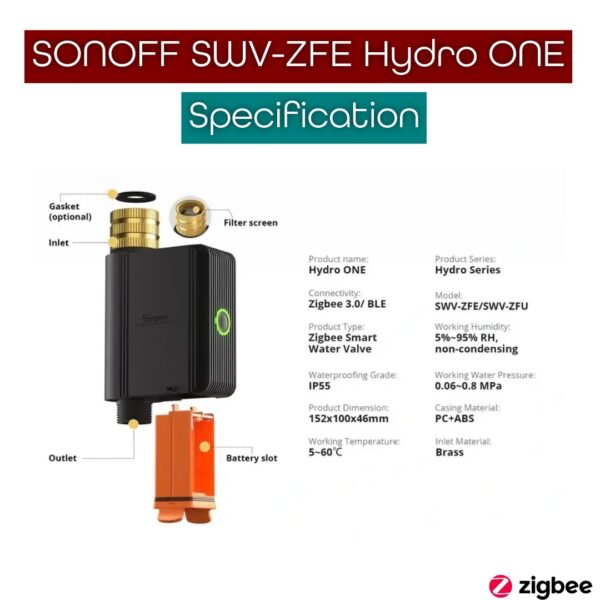

The valve has a brass water inlet for long term corrosion resistance and an IP55 weatherproof rating for outdoor use. Real time monitoring sends alerts for low battery, water shortage, leakage, and frost conditions. A child lock prevents accidental operation. Water usage data is stored and available for daily, monthly, and half yearly review, helping you track consumption and adjust your watering strategy.

The Hydro ONE’s main advantage is combining dual communication with a built-in flow meter for precise, flexible irrigation control.

• Dual Communication Modes: Uses Zigbee 3.0 for smart home integration and a proximity mode (BLE) for direct local control from your phone. This is a key benefit, as it ensures you can still operate the valve even if your Zigbee gateway is offline or the outdoor signal is weak.

• Precision Irrigation with a Flow Meter: The integrated flow meter allows you to water by duration or by a precise target volume (e.g., “deliver 20 litres”). This enables significant water savings and ensures your plants get exactly what they need.

• Flexible and Smart Scheduling:

  • Create up to 6 custom schedules.

  • Choose from multiple cycle options: odd/even days, interval scheduling (1–30 days), or custom day selection.

  • Features weather-based skip to automatically pause watering during rain or severe weather.

  • Includes a seasonal adjustment feature to optimize watering duration and volume throughout the year.

• Durable, Outdoor-Ready Design:

  • Features an upgraded brass water inlet for superior corrosion resistance and strength under prolonged water pressure and sun exposure.

  • Boasts an IP55 weatherproof rating for reliable outdoor use.

• Intelligent Safety and Monitoring:

  • Provides real-time alerts for low battery, water shortage, leakage, and frost conditions.

  • Includes a built-in child lock to prevent accidental operation.

  • Offers a manual failsafe to automatically stop the valve if a preset volume isn’t reached within a time limit.

• Data-Driven Insights: Track your water usage with detailed daily, monthly, and half-yearly records of volume and irrigation duration
