Description

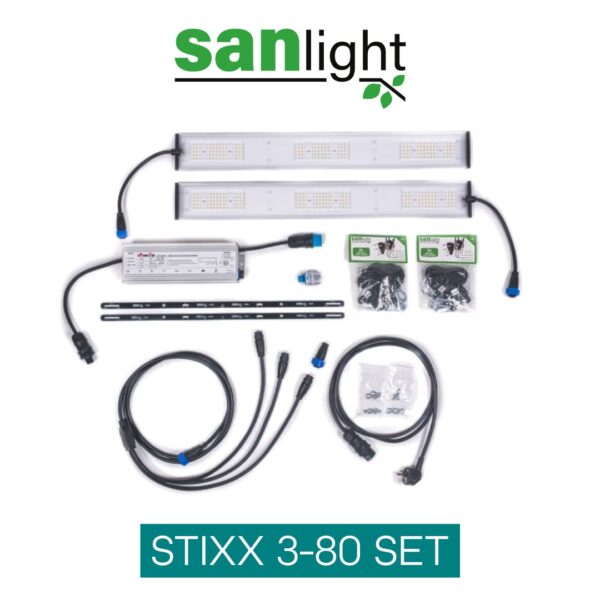

Infos about the SANlight STIXX 3-80 SET

The SANlight STIXX 3-80 SET is the most compact model of the STIXX-Series and is optimized for a depth of 80 cm. This professional LED luminaire offers maximum flexibility for all indoor horticulture applications with limited space, such as vertical farming, multi-layer systems, and undercanopy lighting .

Key features at a glance:

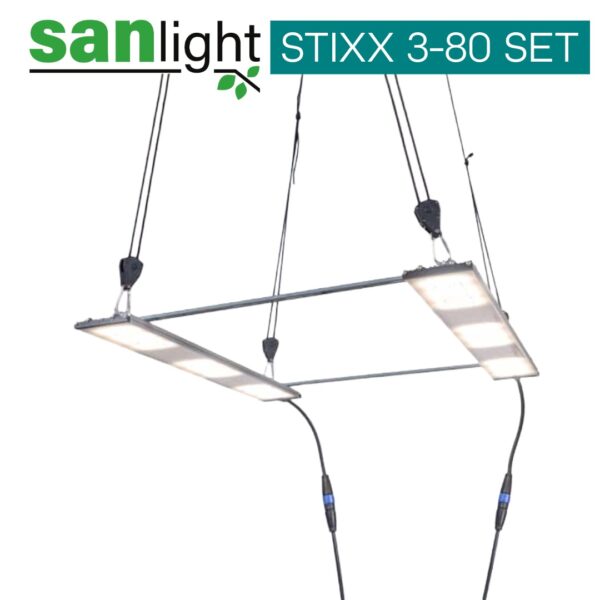

• Flexible Application: The ultra-flat design and IP68 protection rating make the STIXX 3-80 ideal as a toplight, for undercanopy lighting (Interlighting), or as a light source in vertical farming .
• Optimal Spectrum: The full-spectrum light with a strong red component around 660 nm and a color temperature of approx. 3800 K (CRI 90+) promotes vigorous growth in both the vegetative and generative phases and enables precise visual inspection of the plants .
• High Efficiency: With a module efficiency of up to 3.1 µmol/J and a PPF of 382 µmol/s, the luminaire convinces with an excellent ratio of light output to energy consumption .
• Innovative Driver Technology: The STIXX 3-80 is part of the world’s first modular driver system. Multiple luminaires of the same series can be operated on a single external driver, allowing for flexible customization of performance and efficiency .

Technical Data:

• Power Consumption: 140W PPF: 382 µmol/s
• Dimensions (LxWxH): 67,6×8,5×1,69cm
• Protection Rating: IP68
• Beam Angle: 90/130° (asymmetrical secondary optics)
• Light Maintenance (LM90): > 53,000 h
• Warranty: 3 years
